Range of product; BASIC

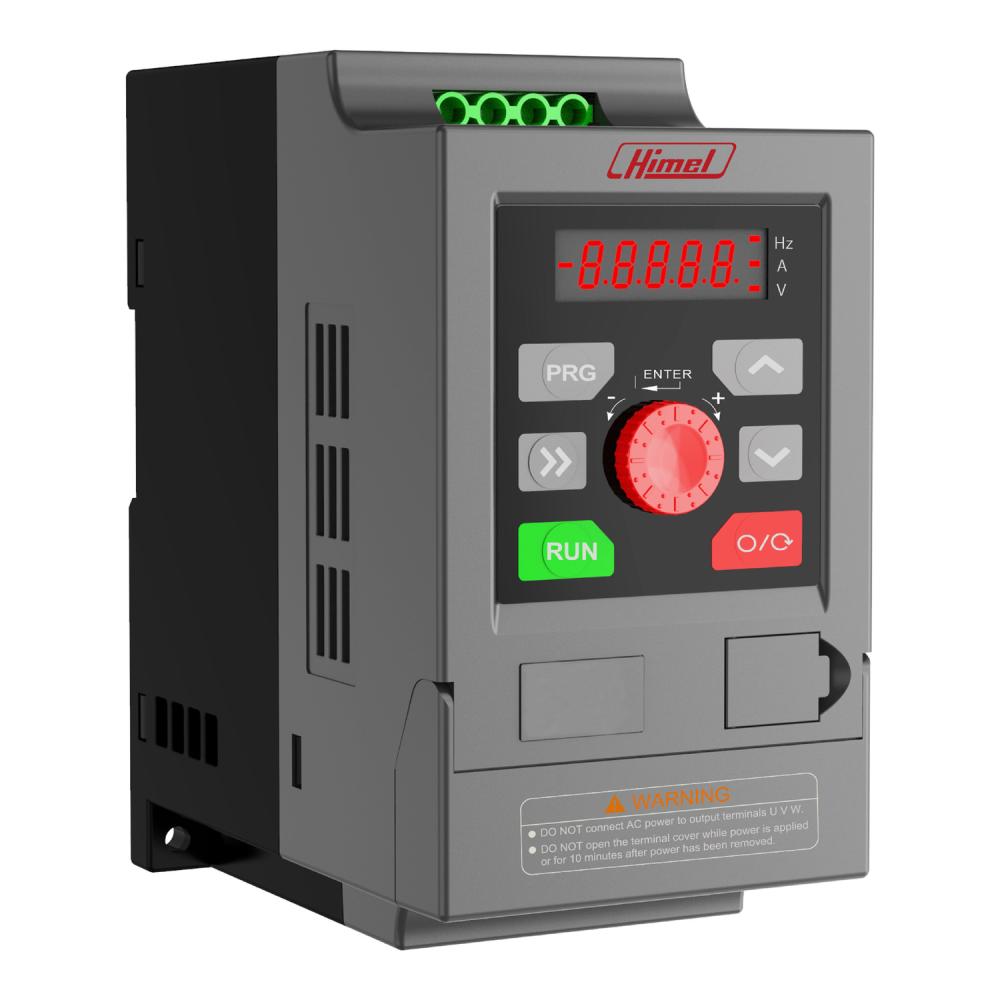

Product or component type; Variable speed drive
Product specific application; Pumps and fans
Network number of phases; 3 phases
[Us] rated supply voltage;380... 440 V - 15...10%; Supply frequency50... 60 Hz
Supply frequency;50... 60 Hz
Motor power kW; 5.5 kW for heavy duty
Motor power hp; 7.38 hp for heavy duty
Maximum transient current; 19.5 A during 1 min (heavy duty),23.4 A during 3 s (heavy duty),26 A during 0 s (heavy duty)
Asynchronous motor control profile; SVC and V/f energy saving ratio
Speed drive output frequency;0... 599 Hz
Continuous output current; 13 A
