Range of product; EXPERT-Standard

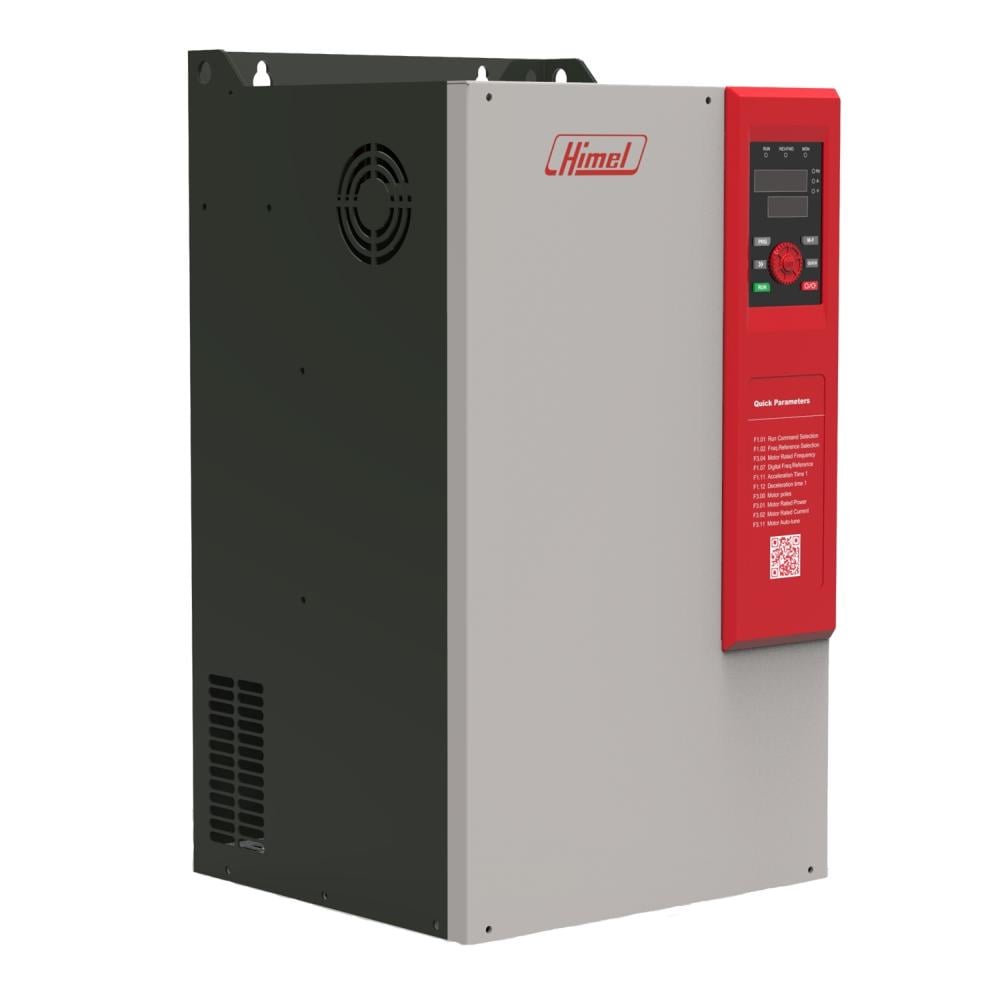

Product or component type; Variable speed drive
Product specific application; Advance general purpose
Format of the drive; Standard
Product destination; Asynchronous motors
IP degree of protection; IP20
Network number of phases; 3 phases
[Us] rated supply voltage;380... 440 V - 15...10 %
Motor power kW; 30 kW for heavy duty; 37 kW for light duty
Motor power hp; 40.23 HP for heavy duty,49.62 HP for light duty
Maximum transient current; 90 A during 1 min (heavy duty),108 A during 3 s (heavy duty),120 A during 0 s (heavy duty),90 A during 1 min (light duty),112.5 A during 3 s (light duty),135 A during 0 s (light duty)
Asynchronous motor control profile; SVC and V/f energy saving ratio
Speed drive output frequency;0... 550 Hz
Communication port protocol; Modbus,PROFINET
