Range of product-EXPERT-Standard

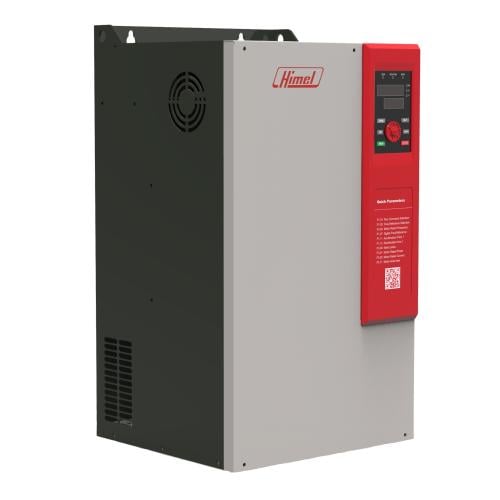

Product or component type-Variable speed drive
Product specific application-Advance general purpose
Format of the drive-Standard
Product destination-Asynchronous motors
IP degree of protection-IP20
Type of cooling-Fan
Network number of phases-3 phases
[US] rated supply voltage-380... 440 V - 15...10 %
Motor power kW-200 kW for heavy duty,220 kW for light duty
Motor power hp-268.2 hp for heavy duty,295.02 HP for light duty
Maximum transient current-577.5 A during 1 min (heavy duty),693 A during 3 s (heavy duty),770 A during 0 s (heavy duty),516 A during 1 min (light duty),645 A during 3 s (light duty),774 A during 0 s (light duty)
Asynchronous motor control profile-SVC and V/f energy saving ratio
Speed drive output frequency-0... 550 Hz
Communication port protocol-Modbus, PROFINET
