- Range of product-EXPERT-Standard
- Product or component type-Variable speed drive
- Product specific application-Advance general purpose
- Format of the drive-Standard
- Product destination-Asynchronous motors
- IP degree of protection-IP20
- Type of cooling-FAN
- Network number of phases-3 phases
- [US] rated supply voltage-380... 440 V - 15...10 %
- Motor power kW-220 kW for heavy duty,250 kW for light duty
- Motor power hp-295.02 HP for heavy duty,335.25 hp for light duty
- Maximum transient current-645 A during 1 min (heavy duty),774 A during 3 s (heavy duty),860 A during 0 s (heavy duty),558 A during 1 min (light duty),697.5 A during 3 s (light duty),837 A during 0 s (light duty)
- Asynchronous motor control profile-SVC and V/f energy saving ratio
- Speed drive output frequency-0... 550 Hz
- Communication port protocol-Modbus,PROFINET
اضغط علي الصورة لتكبيرها
انقر هنا للمزيد من
Himel

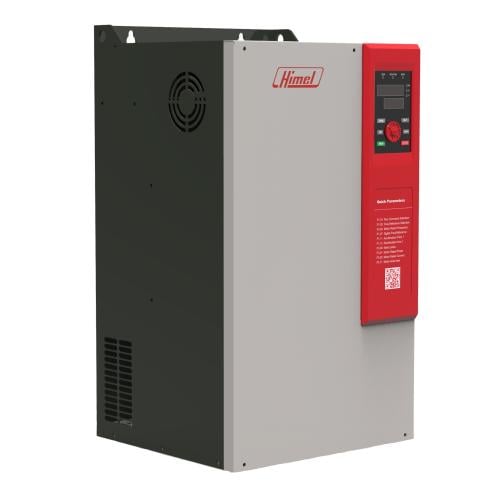

HAVXS4T2200G2500P-VFD Expert 250kW 335HP 465A ND AC 380-440V 3Ph-DRIVE HIMEL
تسوق آمن، بياناتك محمية دائمًا
- Range of product-EXPERT-Standard
- Product or component type-Variable speed drive
- Product specific application-Advance general purpose
- Format of the drive-Standard
- Product destination-Asynchronous motors
- IP degree of protection-IP20
- Type of cooling-FAN
- Network number of phases-3 phases
- [US] rated supply voltage-380... 440 V - 15...10 %
- Motor power kW-220 kW for heavy duty,250 kW for light duty
- Motor power hp-295.02 HP for heavy duty,335.25 hp for light duty
- Maximum transient current-645 A during 1 min (heavy duty),774 A during 3 s (heavy duty),860 A during 0 s (heavy duty),558 A during 1 min (light duty),697.5 A during 3 s (light duty),837 A during 0 s (light duty)
- Asynchronous motor control profile-SVC and V/f energy saving ratio
- Speed drive output frequency-0... 550 Hz
- Communication port protocol-Modbus,PROFINET
