- Range of product-EXPERT-Standard
- Product or component type-Variable speed drive
- Product specific application-Advance general purpose
- Format of the drive-Standard
- Product destination-Asynchronous motors
- IP degree of protection-IP20
- Type of cooling -FAN
- Network number of phases-3 phases
- [US] rated supply voltage-380... 440 V - 15...10 %
- Motor power kW-355 kW for heavy duty,400 kW for light duty
- Motor power hp-475 hp for heavy duty,540 hp for light duty
- Maximum transient current-967.5 A during 1 min (heavy duty),1161 A during 3 s (heavy duty),1290 A during 0 s (heavy duty),900 A during 1 min (light duty),1125 A during 3 s (light duty),1350 A during 0 s (light duty)
- Asynchronous motor control profile-SVC and V/f energy saving ratio
- Speed drive output frequency-0... 550 Hz
- Communication port protocol-Modbus, PROFINET
اضغط علي الصورة لتكبيرها
انقر هنا للمزيد من
Himel

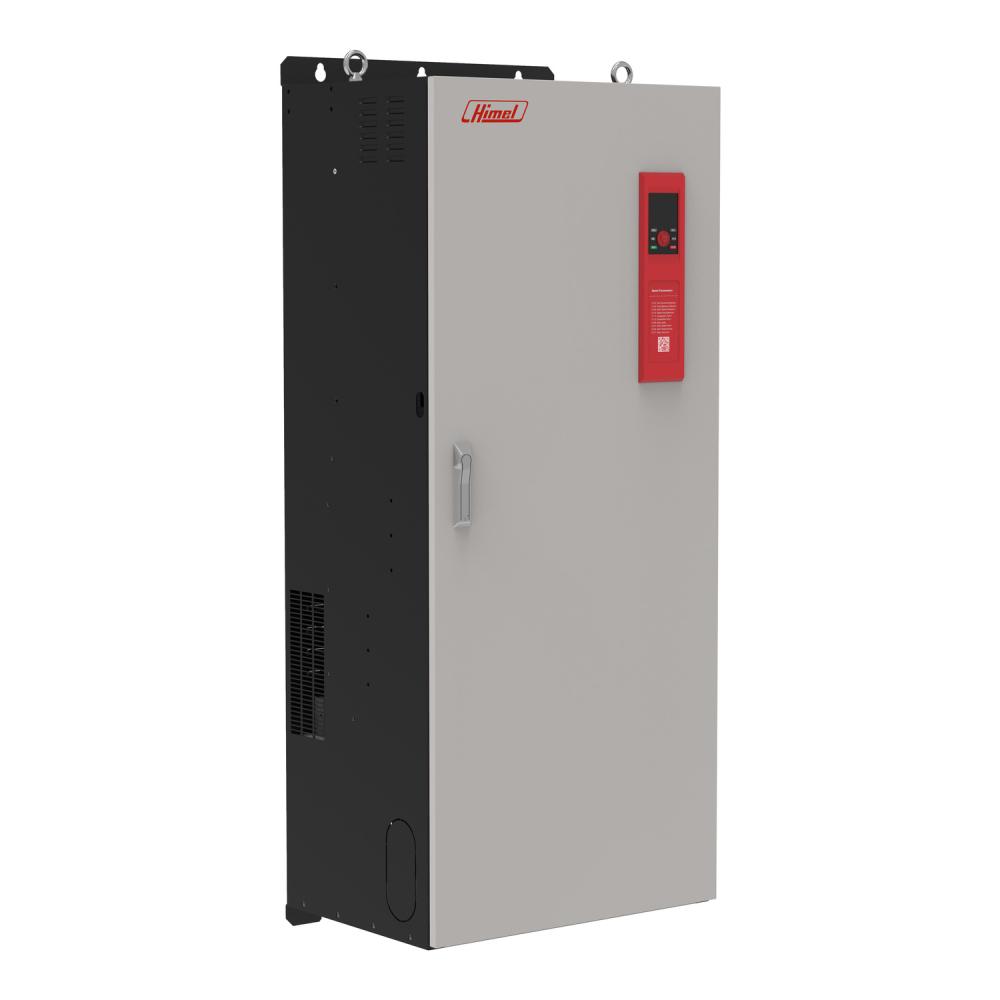

HAVXS4T3550G4000P-VFD Expert 400kW 540HP 750A ND AC 380-440V 3Ph-DRIVE HIMEL
تسوق آمن، بياناتك محمية دائمًا
- Range of product-EXPERT-Standard
- Product or component type-Variable speed drive
- Product specific application-Advance general purpose
- Format of the drive-Standard
- Product destination-Asynchronous motors
- IP degree of protection-IP20
- Type of cooling -FAN
- Network number of phases-3 phases
- [US] rated supply voltage-380... 440 V - 15...10 %
- Motor power kW-355 kW for heavy duty,400 kW for light duty
- Motor power hp-475 hp for heavy duty,540 hp for light duty
- Maximum transient current-967.5 A during 1 min (heavy duty),1161 A during 3 s (heavy duty),1290 A during 0 s (heavy duty),900 A during 1 min (light duty),1125 A during 3 s (light duty),1350 A during 0 s (light duty)
- Asynchronous motor control profile-SVC and V/f energy saving ratio
- Speed drive output frequency-0... 550 Hz
- Communication port protocol-Modbus, PROFINET
مشاهدة المزيد مشاهدة أقل
