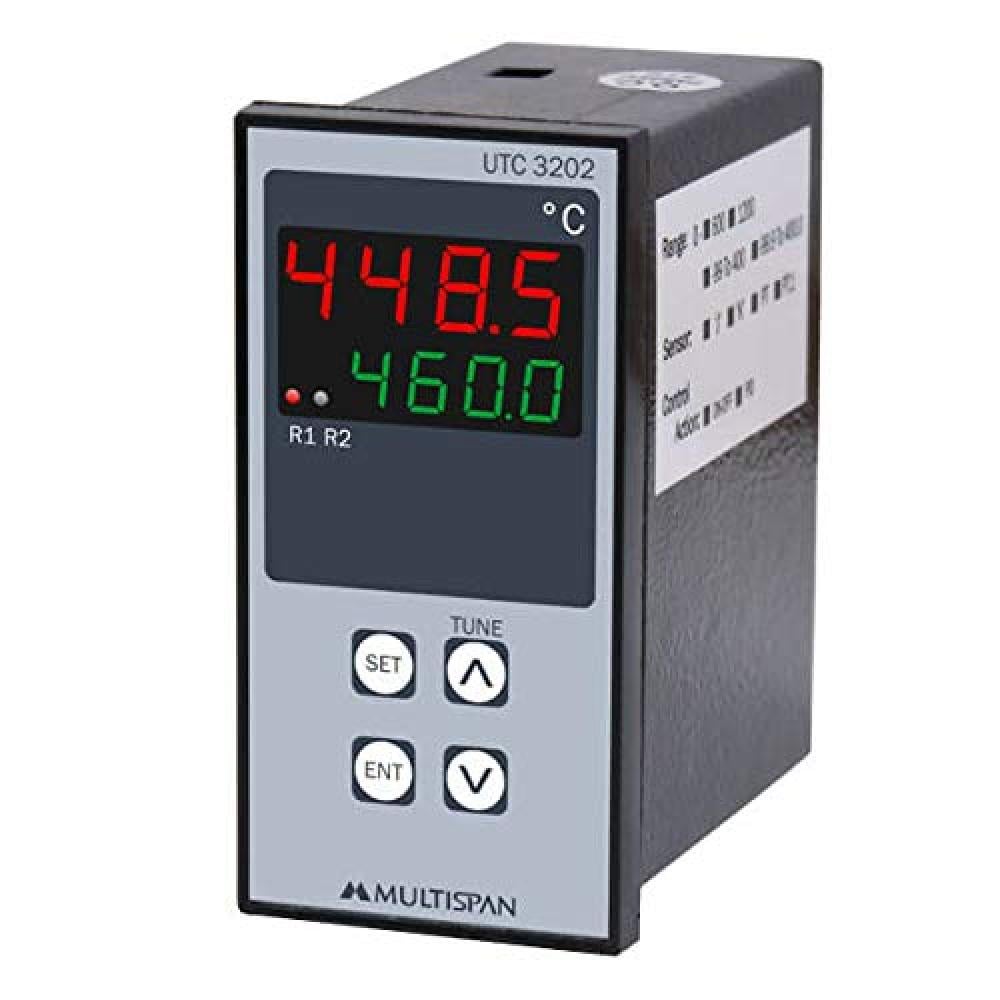

Pannel Cutout(mm)92×45Input SensorJ/K/PT-100 2W/3W (Configurable)Range j (0°C to 600°C),K (0°C to 1200°C, 0.0 to 500.0°C)
PT-100 2W/3W (-50.0°C to 400.0°C,-50.0°C to 400.0°C)Output 2 Output : (SSR parallel to 1st Relay) +1 Relay or 1 SSR Drive O/P (2 Relay 1C/O, 5A 230V AC
(Resistance load) or SSR Drive O/P 12V DC, 20mAOperting ModeHigh/Cool / AlarmAlarmHigh/Inband/ Absolute Low / Absolute Outband/Outband/End Alam / Low Alarm Outband + Soak timerControl ActionPID / ON-OFF (Configurable)Accuracy±1% of FSDSupply100 to 270V AC , 50/60Hz, Approx 4VADimension(HxWxD) 96x48x85
